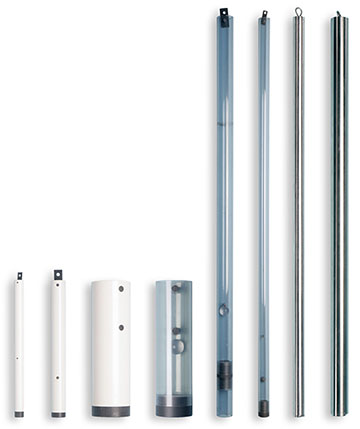

Geotech Geobailer Reusable Bailers
Geotech reusable bailers provide a simple and cost effective way to collect groundwater samples from monitoring wells. These ready to use bailers feature long lasting materials of construction and are easy to clean.
Our PVC Geobailers are PFAS-free and our Stainless Steel Geobailers can be ordered PFAS-free as well.
White PVC Geobailers
- An economical reusable bailers constructed of white PVC material
- PFAS-free
- Available with either a standard check ball, recessed check ball, or recessed double check balls
Clear PVC Geobailers
- Constructed with transparent PVC material
- Great for viewing hydrocarbon layers
- PFAS-free
- Available with either a standard check ball, recessed check ball, or recessed double check balls
Stainless Steel Geobailers
- Rugged 316 Stainless Steel material
- The most durable and long lasting Geobailer
- Available with Viton® or PFAS-free O-rings – specify at time of order
PVC Geobailers
White, Clear, Recessed Check, Recessed Double Check
| Volume oz. (ml) | ||||||
| Nominal Length |
12" (30.5 cm) |
24" (61 cm) |
36" (91.4 cm) |
48" (121.9 cm) |
60" (152.4 cm) |
|
| Diameter OD | ||||||
| 0.675" (17.145 mm) | 1.2 (34) | 2.4 (72) | 3.7 (109) | 5.0 (147) | 6.2 (185) | |
| 0.84" (21.336 mm) | 1.9 (55) | 3.9 (115) | 5.9 (174) | 7.9 (234) | 9.9 (294) | |
| 1.66" (42.164 mm) | 9.1 (270) | 19.1 (564) | 29.0 (858) | 38.9 (1152) | 48.9 (1446) | |
| 3.5" (88.90 mm) | 45.1 (1333) |
94.2 (2786) | 143.3 (4240) | 192.5 (5694) | 241.6 (7148) | |
316 Stainless Steel Geobailers
| Volume oz. (ml) | ||||||
| Nominal Length | 36" (91.4 cm) | |||||
| Diameter OD | ||||||
| 0.84" (21.336 mm) | 7.8 (230) | |||||
| 1.66" (42.164 mm) | 36.2 (1070) | |||||
Bailing Cord Specifications
| Yellow Nylon |
| White Diamond Braid Nylon |
| White Nylon Twine #15 |
| FEP Coated Stainless Steel Safety Cable |
| Bailing Cord Materials | Sizes | |
| Yellow Nylon | 3/16", 1000 ft. roll | |
| White Diamond Braid Nylon | 1/8", 1000 ft. roll | |
| White Nylon Twine #15 | 350 ft. roll | |
| FEP Coated Stainless Steel Safety Cable | 1/16" x 3/32", 3/32" x 1/8" |

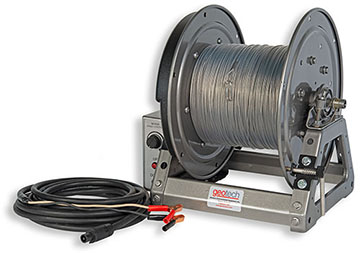

| Optional Electric Rewind Bailer Cable Reel |
