• Compact and Portable –
  9 lb. (4 kg) controller can be shipped or back packed anywhere!
• Controls all bladder pumps -
  Portable, dedicated, and most air lift pumps on the market today.
• Built in high performance air compressor –
  Allows sampling from depths of 180 feet (55 m).
• Built-in reverse polarity protection
• Operates from a 12V DC car battery –
  Ask about our portable rechargeable battery and optional AC to DC power adapter.
• Push/Pull tube fitting for easy tubing changes –
  Bonded tubing in Polyethylene and FEP lined Polyethylene available by the foot or by the roll.
• Ask about our complete line of low flow sampling kits –
  Including water quality meters and flow cells.

• Optional AC Adapter available
• Carrying case, hard-sided with pre-cut foam and locking latches
• Portable rechargeable 12V DC battery and charger

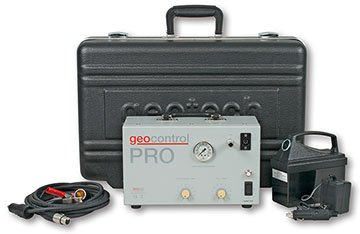

• Professional Pack includes: geocontrol PRO™, DC power cord, battery & charger,
  pump, spare parts kit, and portable carrying case
• Various hose whips for connecting to dedicated systems
• Draw-down control for low flow sampling

geocontrol PRO™ with optional draw-down control for low flow sampling

Applications		Operates all bladder & air lift pumps
Power Requirements		12-14 Volts DC input @ 7.5 Amps 72-84 Watts usage
Maximum Operating Pressure		100 psi (6.8 bar) – self limited for safety
Maximum Operating Depth		180 feet (55 m)
Ambient Operational Temperature		50°F-104°F (10°C-40°C)
Timer: Discharge Time Fill Time		1.8 sec. min. 75 sec. max. 1.8 sec. min. 75 sec. max.
Air/Out Fitting:		.25" OD push/pull fitting 1/8" FPT allows for connection to any fitting option
Dimensions		6.70" H x 4.80" D x 11.40" W (17.02cm H x 12.92cm D x 28.96cm W)
Weight		9 lbs. (4 Kg) total
Optional Carrying Case		21" L x 8.25" W x 14" H (53.34 cm L x 20.95 cm W x 35.56 cm H)
