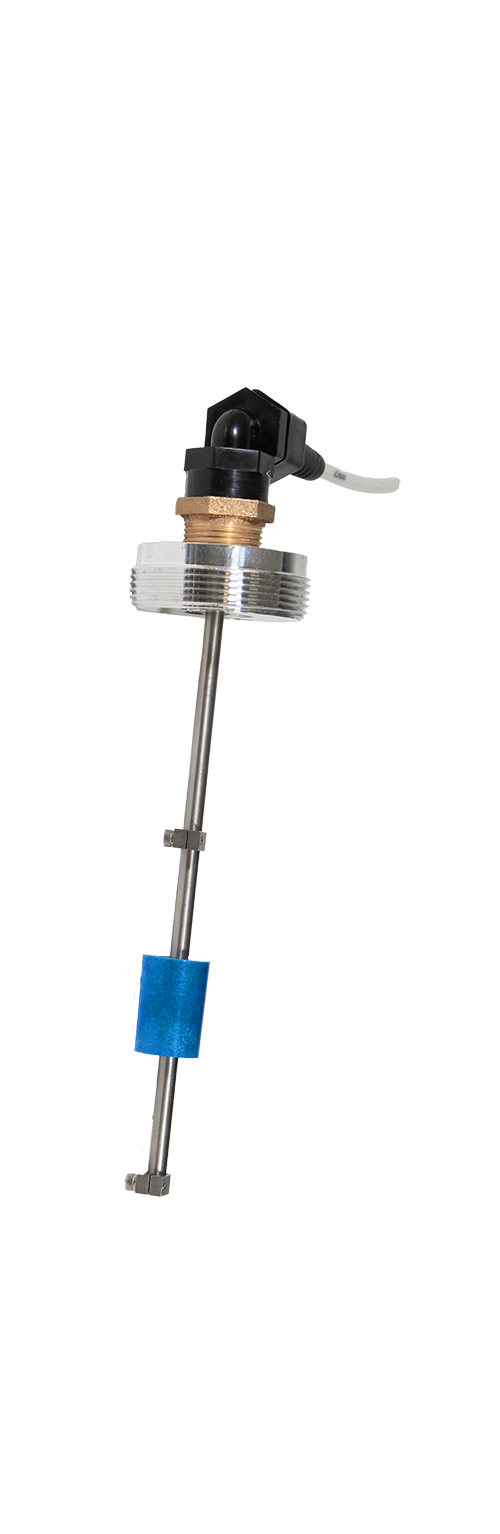

Geotech Level Control Probes
Geotech's Level Control Probes and Switches are designed to provide highly reliable monitoring and detection across a wide range of fluids. They can be used with everything from light oils and hydraulic fluids to diesel, water, and even biohazards. To meet these diverse needs, Geotech offers multiple sensing technologies, including float switch and conductivity sensing. Sometimes, more than one solution might be a good fit, allowing customers to choose based on their preference. Geotech's product line includes single-point, multi-point, and continuous level switches, as well as visual level indicators.
- Intrinsically safe voltage design
- Stainless steel shaft
- Float material designed for use in most hydrocarbon/water applications
- Available in NO/NC options
- Available for harsh environmental applications, call for quote.
- Conductivity probes also available, call for quote.
| Probe Function | Float, Conductivity, Combination of Both | |
| Switch Distance | Minimum of 1" | |
| Switch Contact Type Options | Normally Open, Normally Closed | |
| Type of Float | Product Float (Blue) SG 60, Water Float (Orange) SG 90, SST Product Float, SST Water Float | |
| Float Material | Urethane or Stainless Steel (SST) | |
| Float Position | Above Switch, Below Switch | |
| Float Travel Area in Inches | Minimum 6" (.15m) | |
| Switch Type | Magnetic Reed | |
| Fitting | Threaded Connection, Slip Fit Connection, Custom | |
| Cable Options | Polyurethane, ETFE | |
| Cable Length (ft) | 10', 25', 50', 75', 100', Custome Lengths Available | |
| 8 inch Pin Connector | Optional | |
| Power Requirements | 5 Volt DC with I.S. Energy Level | |
| Strain Relief Orientation | Straight, 90 Degree |
Geotech Level Control Probes are designed to meet a variety of applications such as:
- Environmental Remediation: Use in pumps and other equipment for groundwater extraction and hydrocarbon recovery
- Industrial Process Control: Regulating fluid levels in tanks and sumps
- Tank Level Management:preventing overfilling or running dry in diesel fuel, oil, and other storage tanks
- Wastewater Treatment Controlling levels and operations in lift stations, treatment basins, and sumps
- Deionized and Potable Water Systems

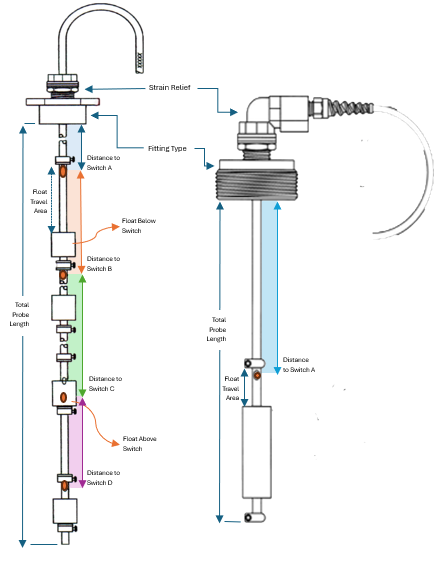

Float activated switch(s) are embedded in the shaft of each level switch probe.
As a float passes over the switch, the switch is activated to change the electrical
contact state, thus sending a signal to a customer supplied control panel or device.
