Geotech PFAS-Free Portable Bladder Pumps

The PFAS-Free Portable Bladder Pump is designed specifically for sampling Per- and Poly-fluoroalkyl chemicals such as perflourooctanoic acid (PFOA) and perfluorooctane sulfonate (PFOS) in groundwater. The PFAS-Free Portable Bladder Pump is made with PFAS-free materials such as 316 stainless steel, high-density polyethylene (HDPE), and Buna-Nitrile to provide representative water samples. The single turn release head and quick change bladders allow for quick, in-the-field bladder changes and easy decontamination.

The PFAS-Free Portable Bladder Pump is proven to not contribute any PFAS substances to sample. Complete pump, tubing and safety cable have been soak tested and laboratory analyzed under "EPA 537 Modified" method. The samples from those tests showed non-detect for all 25 PFAS analytes.

Features
Specifications
Optional Accessories
Downloads

Constructed of 316 stainless steel
For unsurpassed durability and truly representative samples
Portable turnkey systems available
Everything you need to quickly and efficiently sample your site
Easy-to-open housings
No special tools or training required to service the pump
Quick-change bladder configuration
Bladders are easily changed without tools by sliding back the HDPE collars
Drop tube intake option
Allows for deeper sampling
Extra bladders are readily available
Polyethylene bladders for all models
Bonded tubing
In Polyethylene x Polyethylene by the foot or by the roll
Compatible with the Geotech Geocontrol PRO & BP Controller units
CE rated for quality

	1.66" x 36"	1.66" x 18"	.850"	.675"
Pump Housing	316 SS	316 SS	316 SS	316 SS
Pump Ends	316 SS	316 SS	316 SS	316 SS
Bladder Material	Polyethylene	Polyethylene	Polyethylene	Polyethylene
Outer Diameter	1.66" (40 mm)	1.66" (40 mm)	.850" (21.6 mm)	.675" (17 mm)
Length w/Screen	40" (101.6 cm)	19" (48.2 cm)	18 5/8" (47.3 cm)	18 3/4" (47.6 cm)
Weight	5.0 lbs. (2.27 kg)	3.0 lbs. (1.36 kg)	1.1 lbs. (.5 kg)	.83 lbs. (.376 kg)
Volume/Cycle	11 oz. (310 ml)	5 oz. (150 ml)	0.9 oz. (29 ml)	0.5 oz. (15 ml)
Min. Well I.D.	2" (5 cm)	2" (5 cm)	1" (2.5 cm)	.75" (1.9 cm)
Max. Operating Pressure	100 psi (6.9 bar)	100 psi (6.9 bar)	100 psi (6.9 bar)	100 psi (6.9 bar)
Min. Operating Pressure	5 psi (.3 bar) ash*	5 psi (.3 bar) ash*	5 psi (.3 bar) ash*	5 psi (.3 bar) ash*
Max. Sampling Depth	200' (61 m)	200' (61 m)	200' (61 m)	200' (61 m)
Tubing Size
Air ID x OD Discharge ID x OD	.17" x .25" (4 mm x 6 mm) .25" x .375" (6 mm x 10 mm)	.17" x .25" (4 mm x 6 mm) .25" x .375" (6 mm x 10 mm)	.17" x .25" (4 mm x 6 mm) .17" x .25" (4 mm x 6 mm)	.17" x .25" (4 mm x 6 mm) .17" x .25" (4 mm x 6 mm)

*ash = above static head

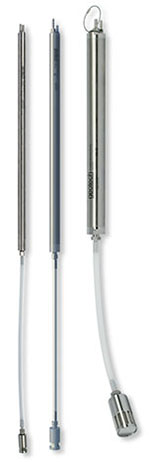

Portable Bladder Pump Drop Tube Assembly

Geotech's optional drop tube intake system allows you to easily relocate the bladder pump intake way beyond the depth limitations of the pump. As long as the pump remains submerged, you can effectively and economically low flow sample from the well's screened section.
